Mechanic D75T 7X-50X Trinocular Stereo Microscope and Mechanic D75S 7-50X Binocular Stereo Microscope For Mobile Phone, Laptops, Automotive ECU, PCB CPU BGA chip soldering repair.
Option:
1. Mechanic D75S-B11: 7X-50X Binocular Microscope B11 base.
2. Mechanic D75T-B11: 7X-50X Trinocular Microscope B11 base.

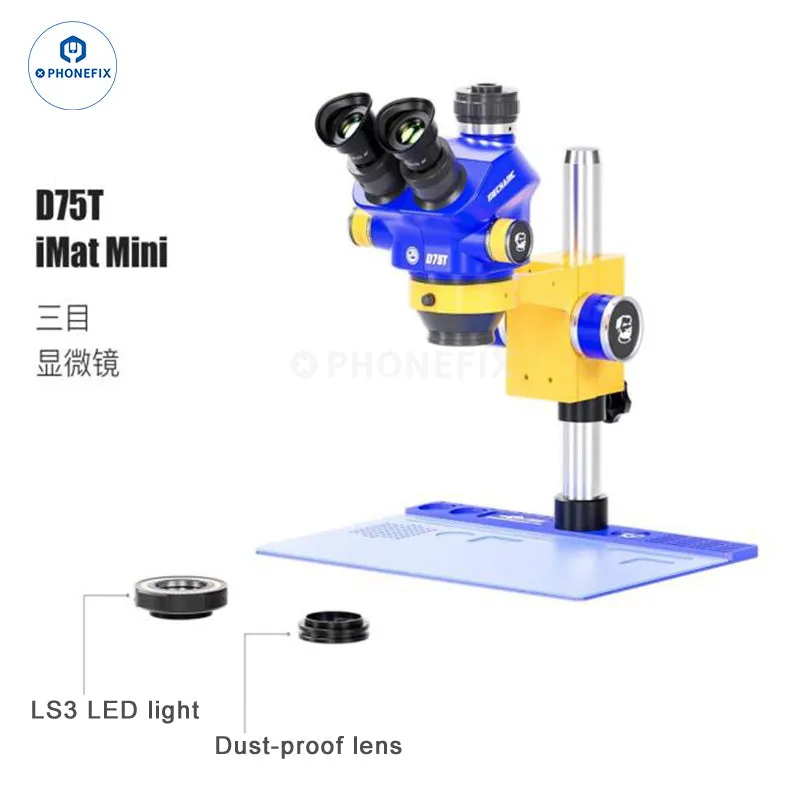

3. Mechanic D75T-iMat mini: 7X-50X Trinocular Microscope iMat mini microscope platform (330mm*245mm).

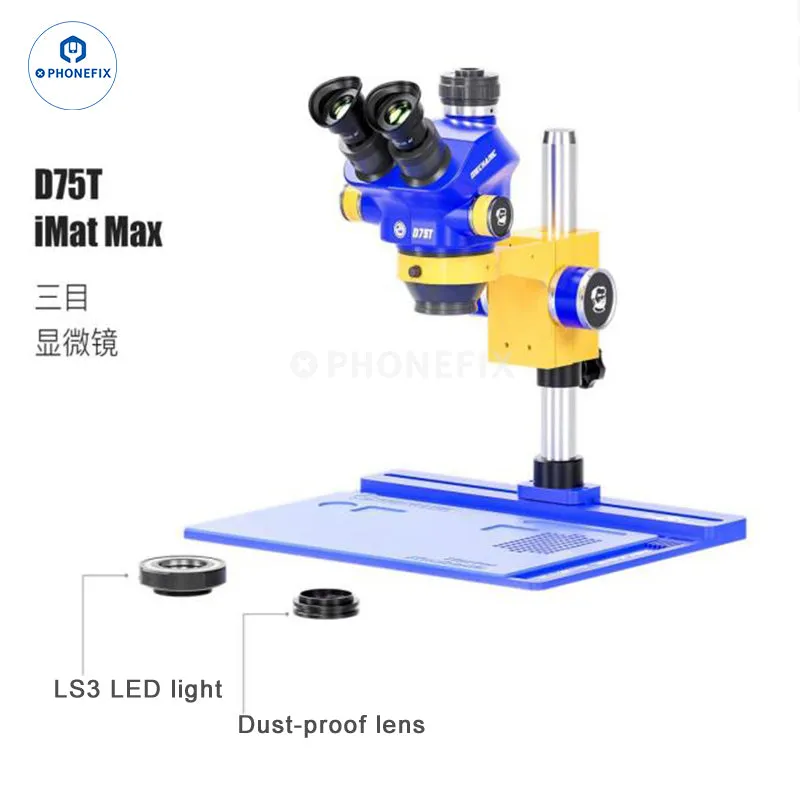

4. Mechanic D75T-iMat Max: 7X-50X Trinocular Microscope iMat Max microscope universal sliding base (380*300*40mm).

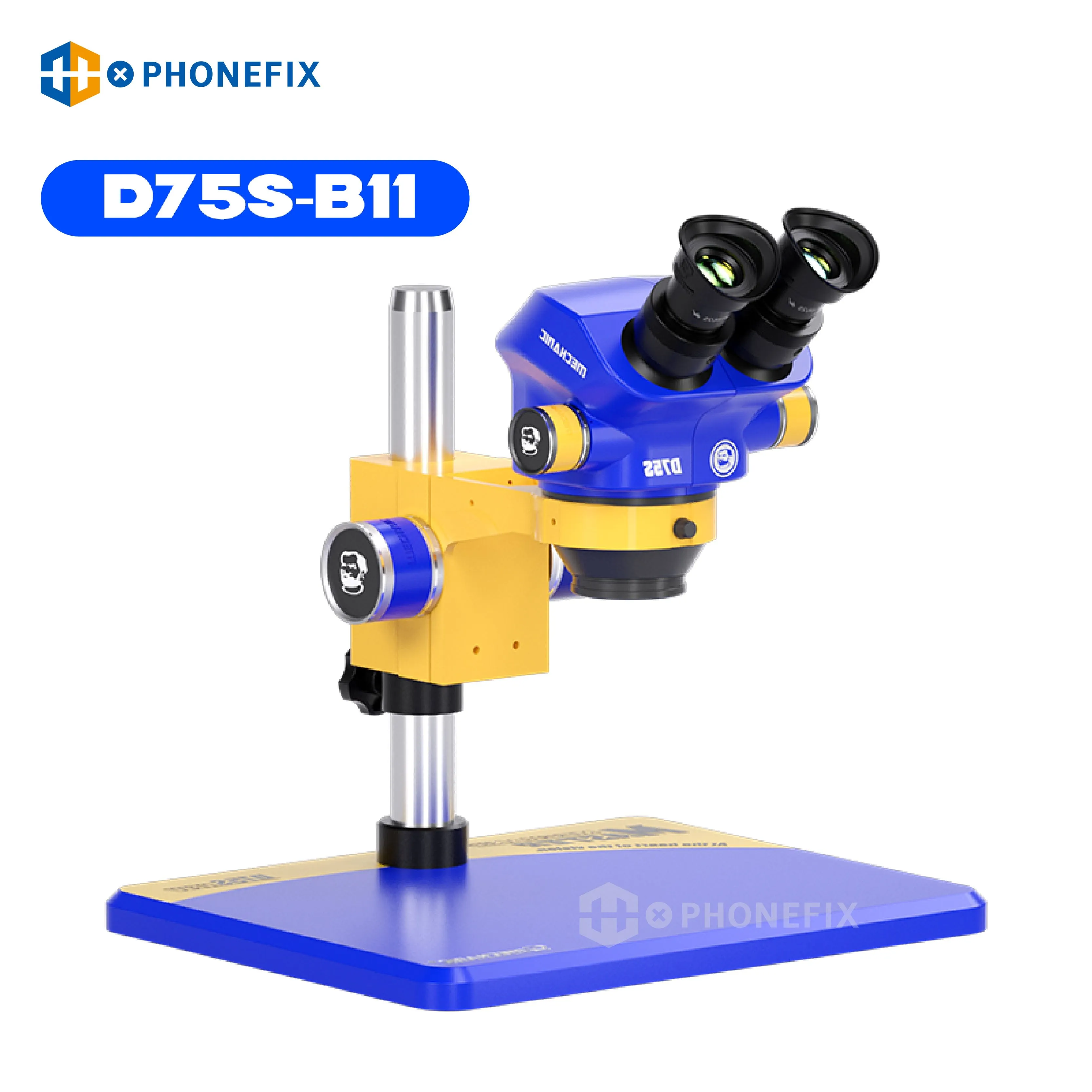

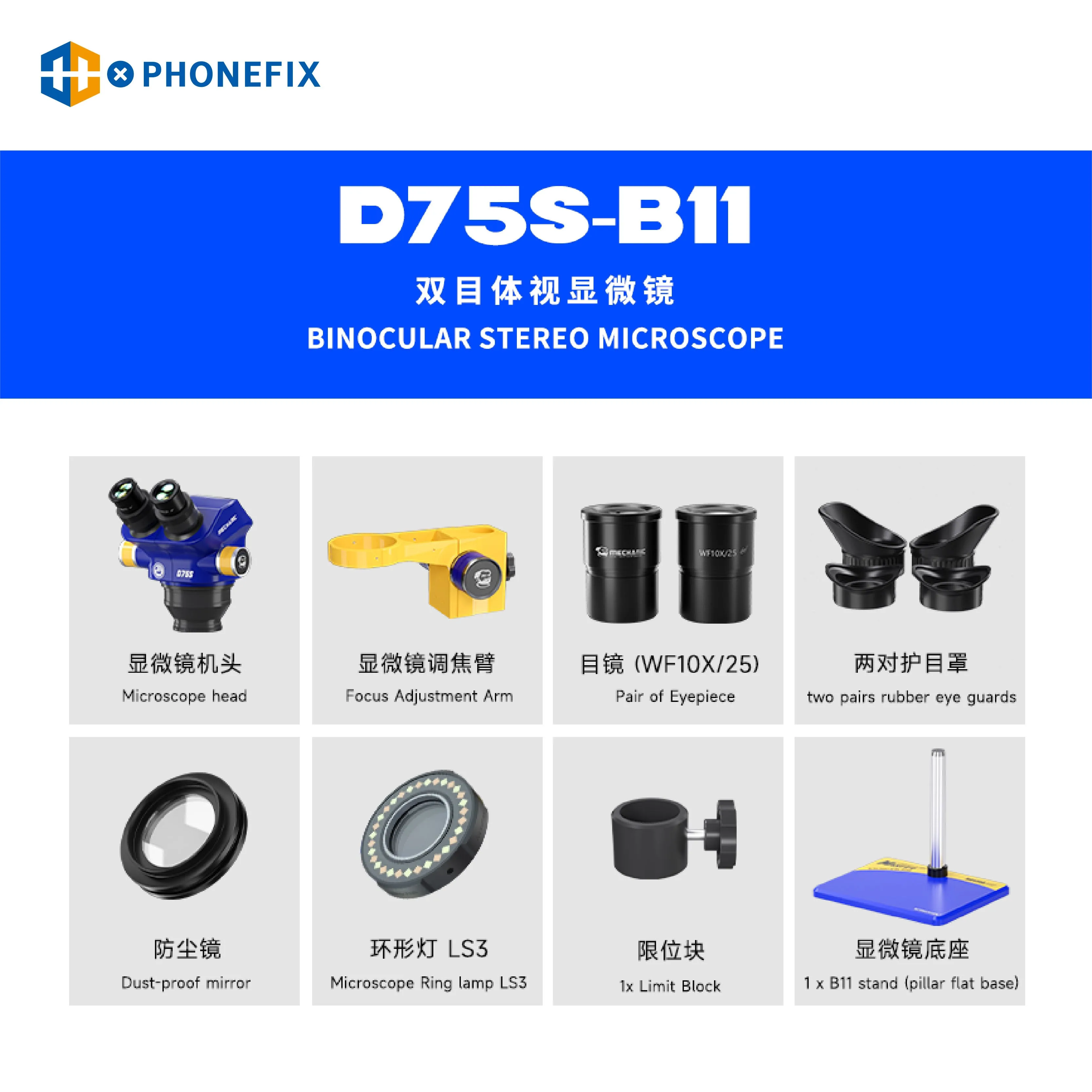

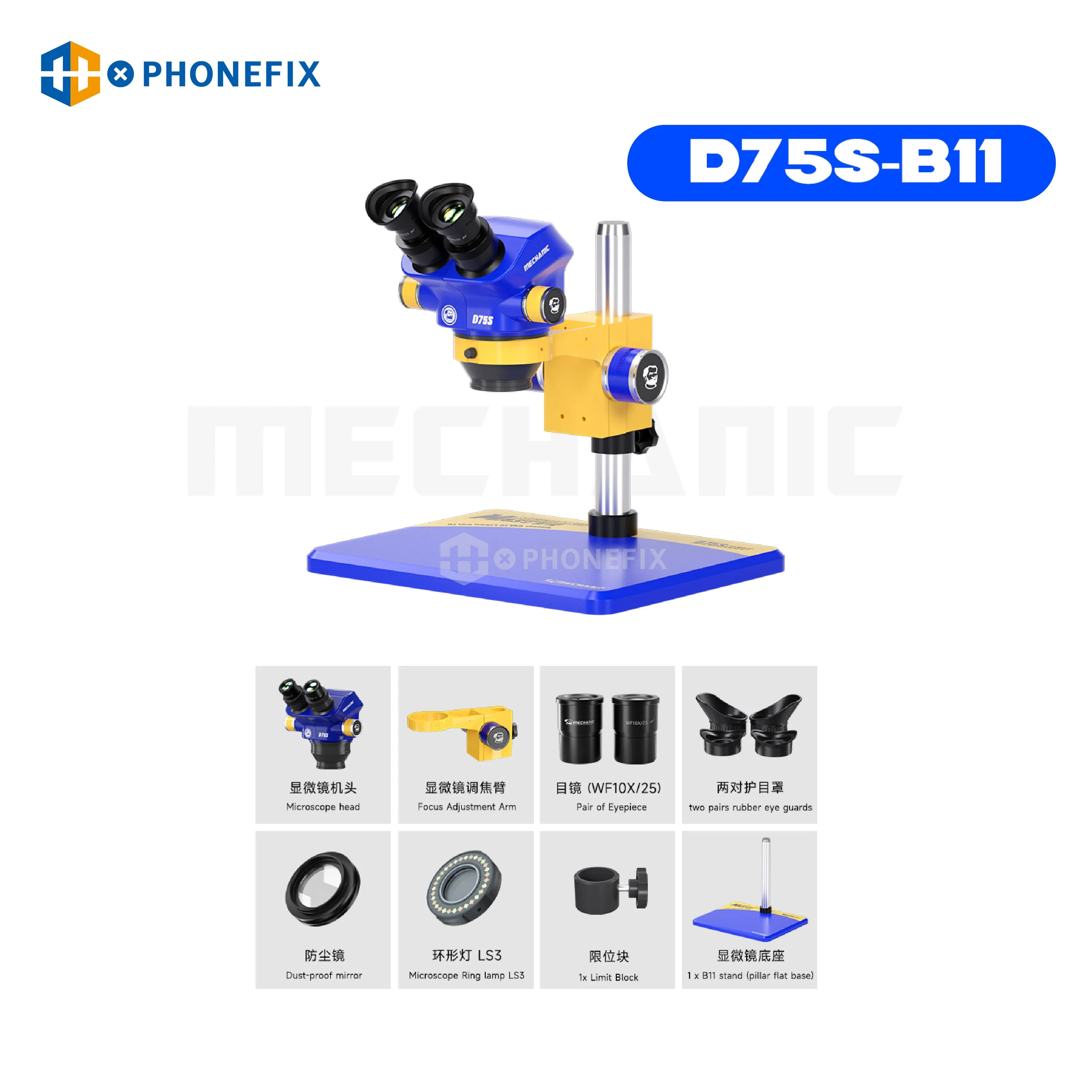

Mechanic D75S-B11 Binocular Stereo Microscope Features:
1. 7X-50X continuous zoom binocular microscope, 45° decline and 360° rotate microscope head, pupil distance 54-76mm, bilateral visual adjustment ±5.
2. High-definition optical objective lens, focus adjustment arm.
3. Used with different types of eyepieces and objective lenses can be expanded to 3.5x-270x, continuous zooming.
5. LED lamp height adjustment, adjustable brightness size, spotlight does not leave a shadow, low power safety quality.
6. Standard WF10X/25 eyepiece, high angle wide angle eyepiece, provide convenience for observers wearing glasses.
7. Standard with B11 column type large plate, other mats optional.

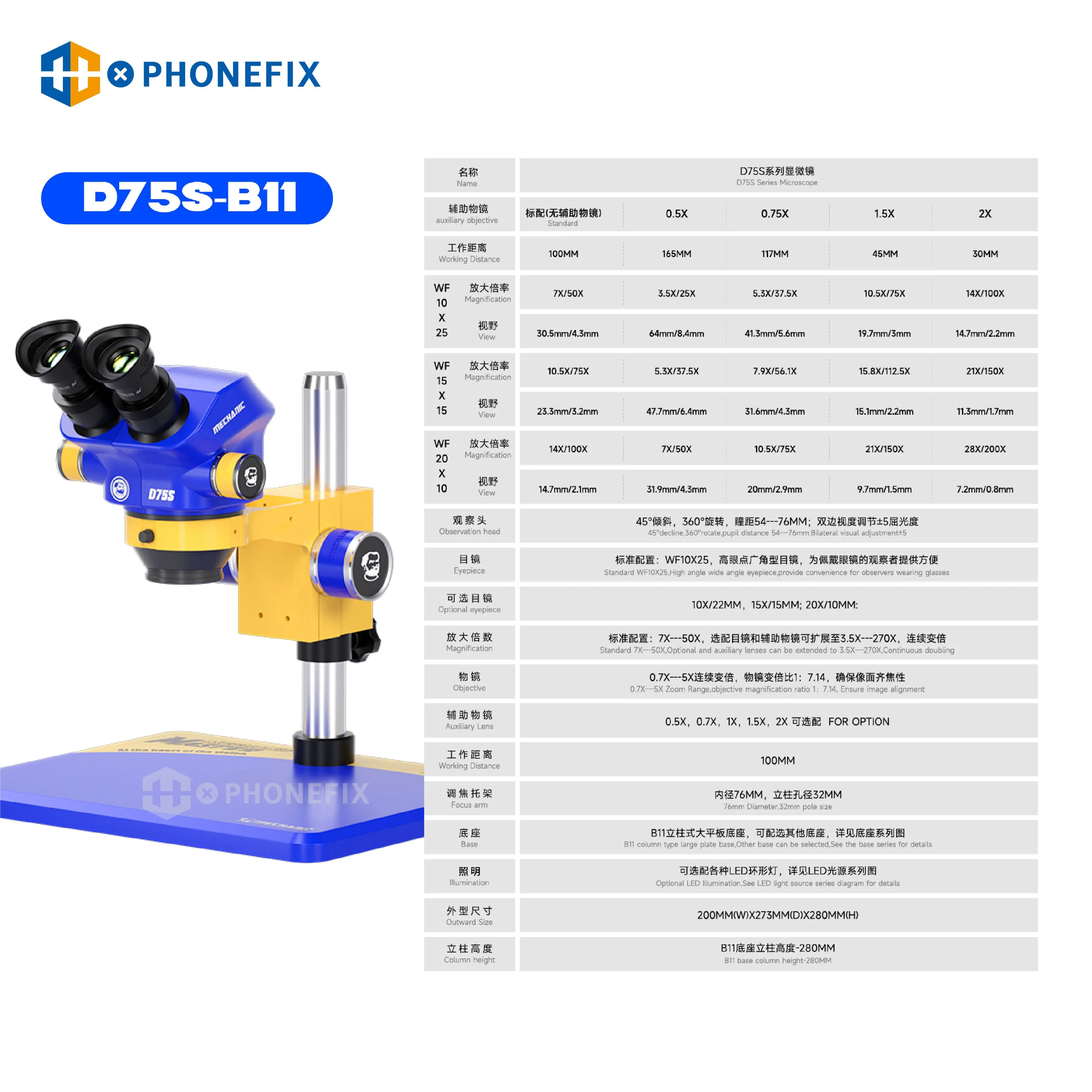

Mechanic D75S Binocular Microscope Parameters:
Microscope Head: 45-Degree Inclined, 360-Degree rotate, pupil distance 54-76mm, bilateral visual adjustment ±5.
Magnification: 7X to 50X Continuous Zoom.
Standard Eyepiece: WF10X/25, two pairs of rubber eye guards.
Standard lens: dust-proof mirror.
Working Distance: 100MM(standard), with other lenses: 165mm, 117mm, 30mm.
Objective: 0.7x-5x zoom range, objective magnification ratio 1:7.14, ensure image alignment.
Illumination: LS3 LED light.
Focus arm: 76mm diameter, 32mm pole size.
Base: B11 column type large base(height-280mm), other holder base can be selected.
Optional Eyepiece: WF15X/15MM, WF20X/10MM, WF10X/20MM.
Optional Auxiliary lens: 0.3X, 0.5X, 0.7X, 1X, 1.5X, 2X.

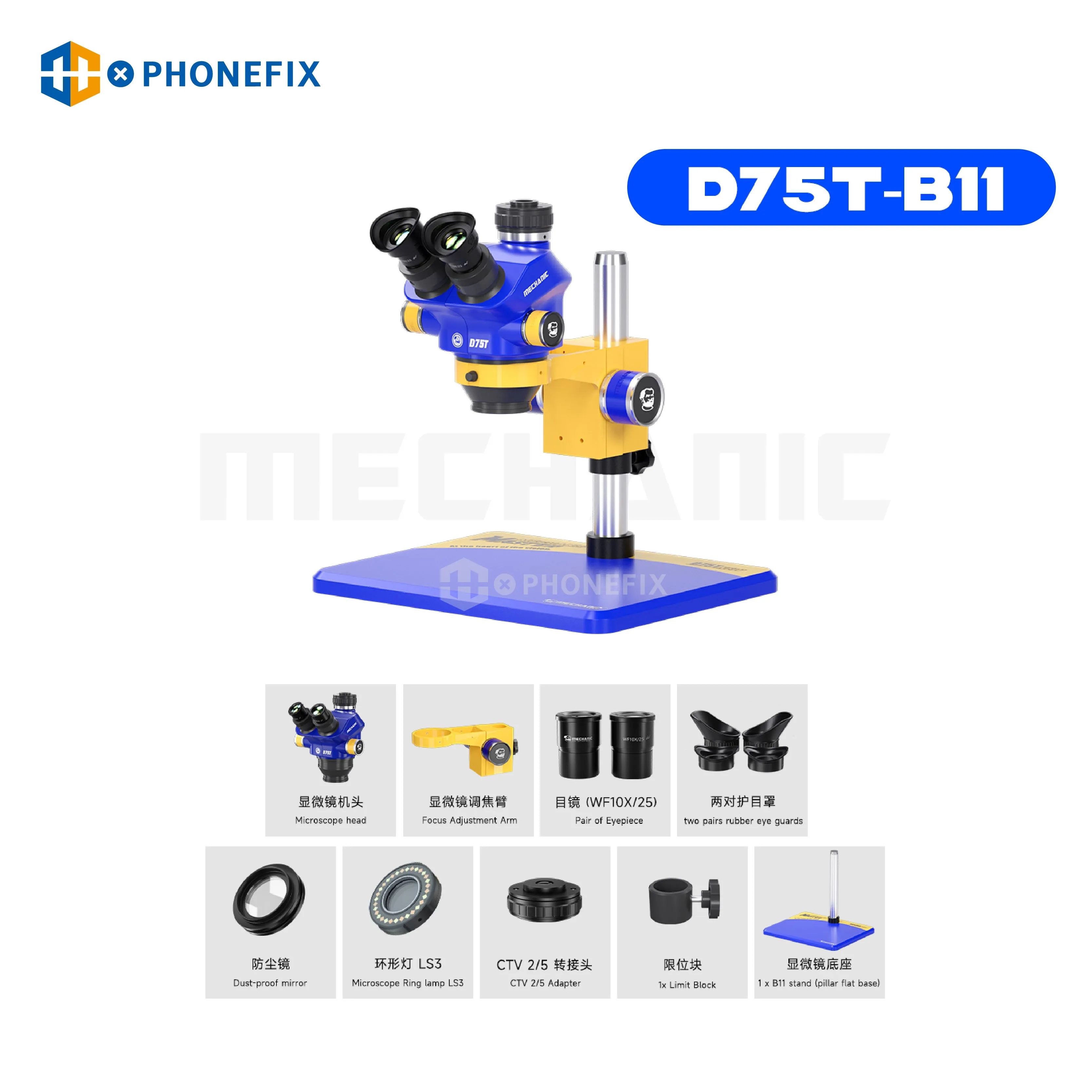

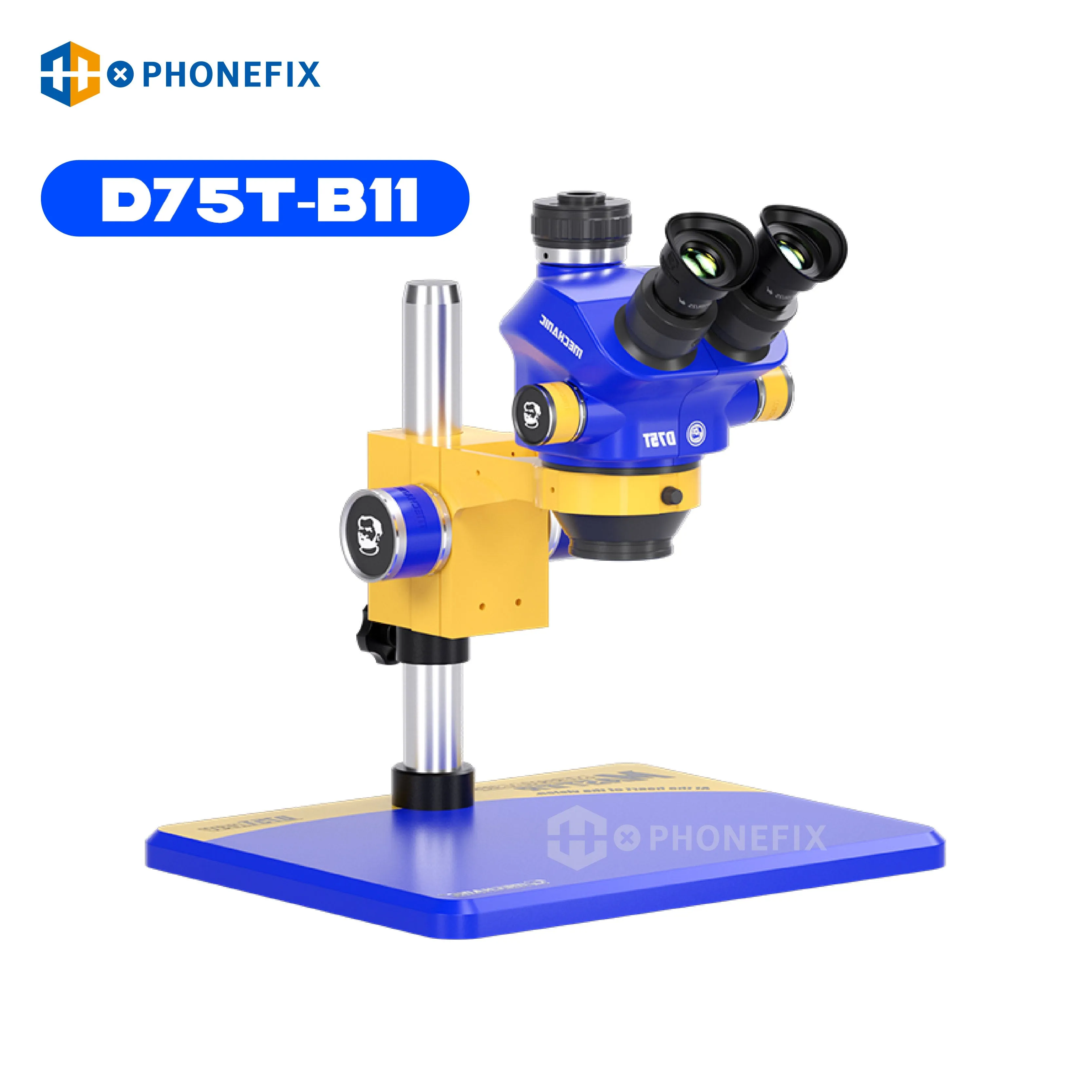

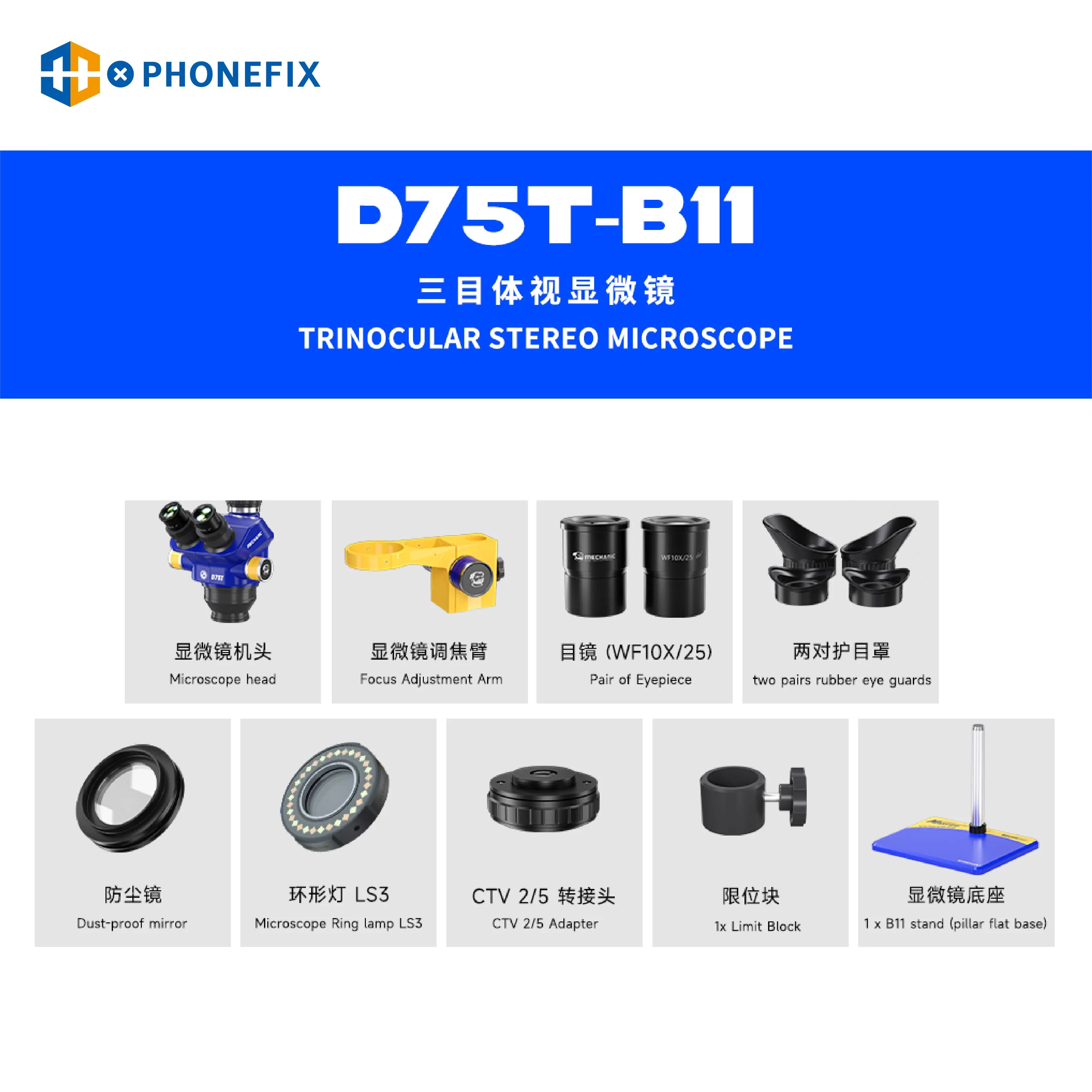

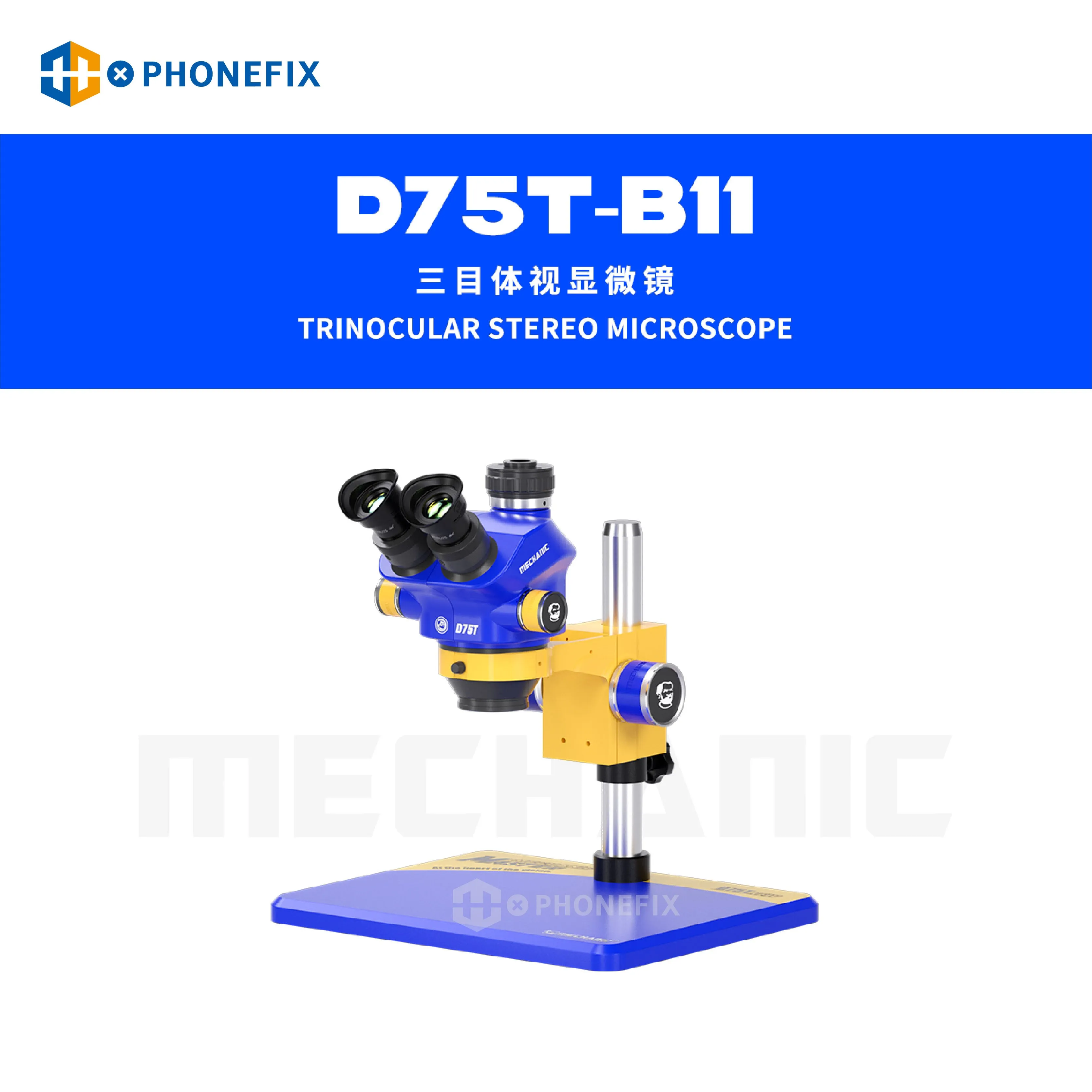

Mechanic D75T-B11 Industrial Trinocular Microscope Features:
1. 7X-50X continuous zoom synchronous trinocular microscope, 45° decline and 360° rotate microscope head, pupil distance 54-76mm, bilateral visual adjustment ±5.
2. High-definition optical objective lens, focus adjustment arm.
3. Used with different types of eyepieces and objective lenses can be expanded to 3.5x-270x, continuous zooming.
5. LED lamp height adjustment, adjustable brightness size, spotlight does not leave a shadow, low power safety quality.
6. Standard WF10X/25 eyepiece, high angle wide angle eyepiece, provide convenience for observers wearing glasses.
7. Standard with B11 column type large plate, other mats optional.

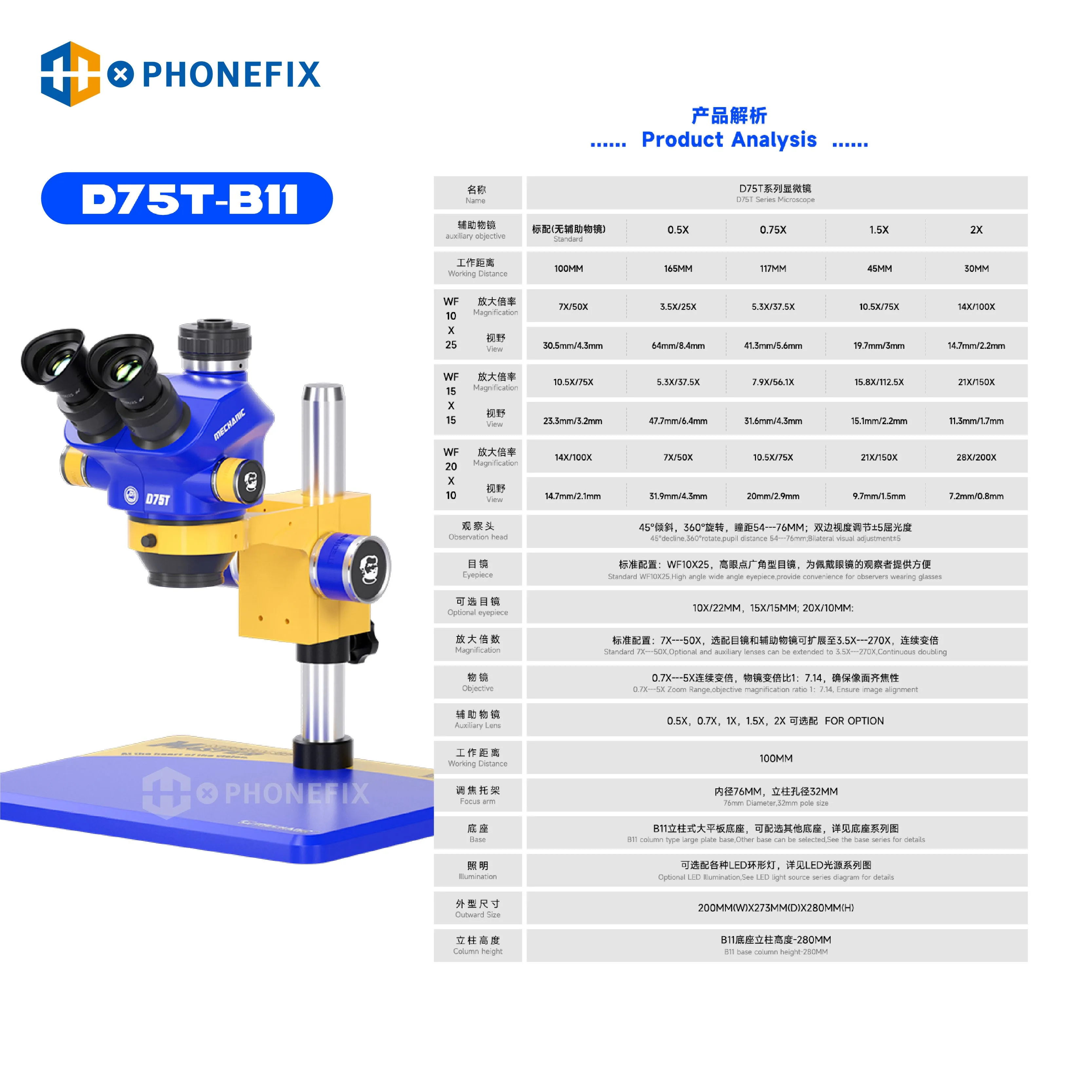

Mechanic D75T Trinocular Microscope Parameters:
Microscope Head: 45-Degree Inclined, 360-Degree rotate, pupil distance 54-76mm, bilateral visual adjustment ±5.
Magnification: 7X to 50X Continuous Zoom.
Standard Eyepiece: WF10X/25, two pairs of rubber eye guards.
Standard lens: dust-proof mirror.
Working Distance: 100MM(standard), with other lenses: 165mm, 117mm, 30mm.
Objective: 0.7x-5x zoom range, objective magnification ratio 1:7.14, ensure image alignment.
Camera Connector(C-mount): CTV 2/5 Adapter (Monitor Eyepiece Synchronous Zoom).
Illumination: LS3 LED light.
Focus arm: 76mm diameter, 32mm pole size.
Base: B11 column type large base, other holder base can be selected.
Optional Eyepiece: WF15X/15MM, WF20X/10MM, WF10X/20MM.
Optional Auxiliary lens: 0.3X, 0.5X, 0.7X, 1X, 1.5X, 2X.
Optional C-mount adapter: 1/2CTV, 2/5 CTV, 1/3 CTV, 0.35X CTV, 0.5X CTV, 1X CTV.
